Granulator - 500

Back
Download Brochure

Technical Specifications

Model PCH - 500 PCH - 500/5 PR - 500 PSTG - 500
Length of Blades 500mm 500mm 500mm 160mm-9, 500mm-2
No. of Blades 4 5 6 11
Throat Size 500 x 500 mm 500 x 500 mm 500 x 500 mm 500 x 500 mm
Grinding Capacity 160 Kgs/Hr 170 Kgs/Hr 180 Kgs/Hr 200 Kgs/Hr
Power Required 15HP (11.25 KW) 15HP (11.25 KW) 20HP (15 KW) 20HP (15 KW)
Screen Area 3000 Sq.Cm 3000 Sq.Cm 3000 Sq.Cm 3000 Sq.Cm
Floor Space (L&W) in mm 1600 x 1250 1600 x 1250 1600 x 1250 1600 x 1250
Suitable for grinding Buckets upto 30Ltrs, Wall Clock Frames, TV Cabinets, A.C. Frames  Pipes upto ∅160mm & PET bottles Films & Shoes, PP Rafia Bags, PP/HIPS Cups & Sheets Solid Articles, Lumps & Preforms
Note
  • Higher Models available on request.
  • Capacity depends on type of material, scrap size & shape.
  • PSTG series - Number of blades & output will depend on application.
  • All specifications are subject to change without notice for constant product development.
  • Control Box, Side Chute, Sucking blower attachments, Silo, Conveyor, Dust collector attachments are optional.

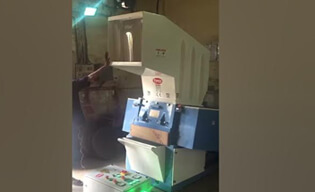

Product Videos
